D-LINK 32 Bit PCI 10/100/1000Mbps Autosense Full Duplex TP Connector

Forsiden Kommunikasjon/Nettverk Nettverkskort D-LINK 32 Bit PCI 10/100/1000Mbps Autosense Full Duplex TP Connector

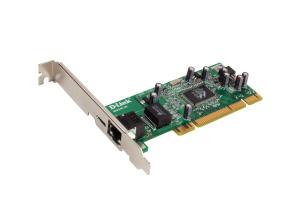

D-LINK 32 Bit PCI 10/ 100/ 1000Mbps Autosense Full Duplex TP Connector (DGE-530T)

D-LINK 32 Bit PCI 10/100/1000Mbps Autosense Full Duplex TP Connector

Varenr.:
DGE-530T
EAN:
0790069251610
  • Grensesnitt PCI
  • Hastighet 1Gbps
  • Media Kobber
  • Porter 1
202,-
252,50 inkl. mva
Ikke på lager
Gi beskjed når varen er på lager
Antall:
Legg i handlekurven
Beskrivelse
Spesifikasjoner
Relaterte produkter
Ekspertomtaler

Product Features:

  • 32bit PCI BUS Master
  • PCI 2.2 Plug-and-Play Support
  • Auto-negotiating 10/100/1000Mbps
Product Description:

The D-Link DGE-530T is a 10/100/1000Mbps copper Gigabit PCI card for servers and workstations. Current systems running at 10Mbps and 100Mbps can be upgraded to Gigabit Ethernet, eliminating network bottlenecks, and increasing productivity. Integrate Gigabit now and you can save time, money, and downtime because the DGE-530T will automatically detect and run at higher speeds when it becomes available.
Cost-Effective, Scalable Migration
As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. Gigabit Ethernet uses your existing Category-5 cabling while providing you with 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation.
Advanced Features and Security
The DGE-530T supports SNMP for remote troubleshooting and management, ACPI for lower power consumption, and WoL for remote wake. This helps to lower total cost of ownership (TCO). The card also features on-board screening of VLAN Tagged Ethernet frames, allowing you to assign multiple subnets to each server and isolate devices within each VLAN from the rest of the network for better traffic control and security. It also supports 802.1p Priority Tagging to allow you to prioritize traffic. The card also features embedded flow control and independent FIFO, providing a means to protect against possible data loss during transmission on the network. With the Cable Diagnostic feature, the card will automatically detect whether you have a bad cable, making your troubleshooting task easier.

Product Specification Summary
  DGE-530T       Single Port 32bit/33mhz 10/100/1000Mbps PCI Adapter
  QoS       Support For 802.1p Priority Tagging
  VLANs       Support For 802.1q VLANs
  Cable Diagnostics       Advanced Cable Diagnostics (Windows Utility)
  Power Management       Wake-On-LAN (WoL) and ACPI 2.0
  Universal BUS Support       3.3V and 5.0V
 PCI Local BUS Master       Supports 2.1/2.2
  Network Management       SNMPv1 Support
  Supported Operating Systems       Windows 98SE/ME/2000/XP, Novell Netware 4.2/5.x/6.x, Red Hat Linux 7.3 & Later (Kernel 2.4.18-3 and later), & (Planned Future Support For Free BSD and Sun Solaris)
Interface Options
  RJ-45       10BASE-T, 100BASE-TX & 1000BASE-T
Network Management
        SNMPv1 & Integrated Cable Diagnostics
Network Standards
  IEEE       802.3 Ethernet, 802.3u Fast Ethernet, 802.3ab Gigabit Ethernet, 802.1p Priority Tagging, 802.1q VLANs, 802.3x Flow Control
Electrical & Electrical Emissions
  Emissions       CE MarkB, BCCI-B, BSMI, C-Tick, & FCC Class B
 Power Requirements      +5Volts +/- 5%
Physical & Environmental Information
  Dimensions(L x W)       124mm x 51mm (4.88 x 2.01) Inches
  Weight       0.23kg (0.51) Pounds
 Temperature       Operating: 0° - 40° C (32° - 104° F)
  Storage       -25° - 55° C (-13° - 131° F)
 Humidity       Operating: 5% to 95% RH, Non-Condensing
Warranty and Support Information
  Warranty       Limited Lifetime Warranty for as long as the original customer/end user owns the product, or five years after product discontinuance, whichever occurs first. Power supplies and fans carry a limited 3 year warranty.
  Support       Free Technical Support
Ordering Information
  Part Number       Description
 DGE-530T       32bit/33mhz 10/100/1000Mbps, Managed, PCI Network Adapter includes standard and low profile brackets
