LEADTEK GF PX9400GT HDMI 1024MB LP
|
|
LEADTEK GF PX9400GT HDMI 1024MB LP
|

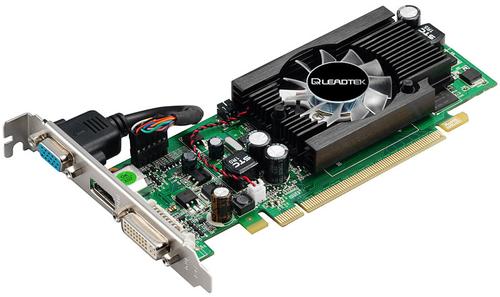

WinFast PX9400 GT HDMI 1024MB (Low Profile)
Highlight
- The ideal low profile graphics solution for your gorgeous Small-Form-Factor Entertainment Center: Media Center PC, Living Room PC, and All-in-One PC
- Support HDMI
- PCI Express 2.0 provides support for next generation PC platforms and doubles the interconnect bit rate from 2.5 GT/s to 5 GT/s (PCI Express 2.0 card is fully backwards compatible with existing PCI-E 1.0 motherboards)
- Revolutionary 128-bit unified architecture GPU with GigaThread™ technology
- PureVideo™ HD delivers the ultimate HD movie experience when playing Blu-ray and HD-DVD
- Ultra-high speed 1024MB of GDDR2 memory
- Support Dual-Link DVI with awe-inspiring 2560x1600 resolution
- Full Microsoft® DirectX® 10 Shader Model 4.0 and OpenGL 2.1 support
- Ultra-smoothly playback H.264, VC-1, WMV and MPEG-2 HD and SD movies
Features
PCI Express 2.0 support
Designed to run perfectly with the new PCI Express 2.0 bus architecture, offering a future-proofing bridge to tomorrow's most bandwidth-hungry games and 3D applications by maximizing the 5 GT/s PCI Express 2.0 bandwidth (twice that of first generation PCI Express). PCI Express 2.0 products are fully backwards compatible with existing PCI Express motherboards for the broadest support.
High-Speed 1024MB GDDR2 Memory on Board
Enhanced memory speed and capacity ensures more flowing video quality in latest gaming environment especially in large scale textures processing
HDCP Capable
Allows playback of HD DVD, Blu-ray Disc, and other protected content at full HD resolutions with integrated High-bandwidth Digital Content Protection (HDCP) support. (Requires other compatible components that are also HDCP capable.)
Dual-Link DVI
Supports hardwares with awe-inspiring 2560-by-1600 resolution, such as the 30-inch HD LCD Display, with massive load of pixels, requiring a graphics card with dual-link DVI connectivity.
Full Microsoft® DirectX® 10 Shader Model 4.0 and OpenGL 2.1 support
The standard for today's PCs and next-generation consoles enables stunning and complex effects for cinematic realism.
NVIDIA® unified architecture
Fully unified shader core dynamically allocates processing power to geometry, vertex, physics, or pixel shading operations, delivering up to 2x the gaming performance of prior generation GPUs.
GigaThread™ Technology
Massively multi-threaded architecture supports thousands of independent, simultaneous threads, providing extreme processing efficiency in advanced, next generation shader programs.
Dual 400MHz RAMDACs
Blazing-fast RAMDACs support dual QXGA displays with ultra-high, ergonomic refresh rates up to 2048x1536@85Hz.
NVIDIA® Quantum Effects™ Technology
Advanced shader processors architected for physics computation enable a new level of physics effects to be simulated and rendered on the GPU—all while freeing the CPU to run the game engine and AI.
NVIDIA® PureVideo™ HD technology
The combination of high-definition video processors and NVIDIA DVD decoder software delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for all video content to turn your PC into a high-end home theater.( Feature requires supported video software.)
| GPU |
NVIDIA GeForce 9400 GT |
| Graphics Bus |
PCI Express 2.0 (fully backwards compatible with PCI Express) |
| Memory size |
1024MB GDDR2 |
| GPU/Memory clock |
550/400MHz |
| Memory data rate |
800MHz |
| Output |
Dual-Link DVI, VGA, HDMI |
| Board Physical Dimensions |
169 x 69 x 18 mm |
| Memory Interface |
128-bit |
| Data bandwidth( GB/sec.) |
16 |
| Fill Rate(billion texels/sec) |
4.6 |
| Stream processor |
16 |
| RAMDACs (MHz) |
400 |
| PureVideo™ HD delivers the ultimate experience when playing Blu-ray and HD-DVD |
| Full Microsoft® DirectX®10 Shader Model 4.0 Support |
| OpenGL® 2.1 Optimizations and Support |
| Package contents |
WinFast PX9400 GT HDMI (Low Profile) graphics card |
| User manual & Software disc |
| Quick installation guide |
| SPDIF cable |
| System Requirements |
Window XP/Vista |
| PCI Express or PCI Express 2.0-compliant motherboard with one x16 graphics slot |
| Minimum 300W or greater system power supply |
| DVD ROM drive for software installation |
| A VGA or DVI compatible monitor |
| Software Bundled |
WinFast Graphics Driver DVD (w/ WinFox II) |
