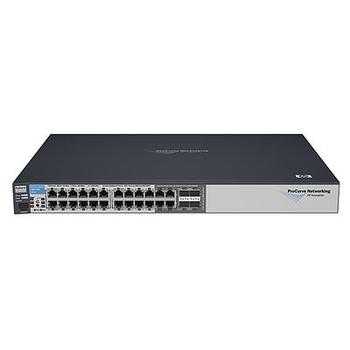

HP ProCurve Switch 2810-24G - 24 portar 10/100/1000Base-T, 100Base-X + 4 x SFP

Varenr.:

J9021A#ABB

EAN:

882780425385

24- and 48-port 10/100/1000 Layer 2 stackable switches, each with 4 dual-functionality ports.

Produkt Ethernet
Porter 24
Hastighet 1Gbps

Produktbeskrivelse

The ProCurve Switch 2810 series consists of two switches: the 24-port ProCurve Switch 2810-24G with 20 10/100/1000 ports, and the 48-port ProCurve Switch 2810-48G with 44 10/100/1000 ports.

Målgruppe

Ideal for high-performance and secure 10/100 and Gigabit connectivity

Samsvar med industristandarder

Elektromagnetisk kompatibilitet

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3

Immunitetsstandard

EN 55024, CISPR 24; IEC 61000-4-2; 4 kV CD, 8 kV AD; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3

Samsvar med industristandarder

EN: EN55024, CISPR 24; ESD: IEC 61000-4-2; 4 kV CD, 8kV AD; Radiated: IEC 61000-4-3; 3V/m; EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); Surge: IEC 61000-4-5; 1 kV/2 kV AC; Conducted: IEC 61000-4-6; 3V; Power frequency magnetic field: IEC 61000-4-8; 1A/m, 50 or 60 Hz; Voltage dips and interruptions: IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods; Harmonics: EN61000-3-2, IEC61000-3-2; Flicker: EN61000-3-3, IEC61000-3-3

Sikkerhet

cUL (CSA 22.2 No. 60950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 60950

Akustisk trykkemisjon (ventemodus)

Akustisk trykkemisjon

Power: 40.3 dB

Driftshøyde

up to 3 km

Luftfuktighetsområde ved drift

15 to 95% @ 104°F (40°C) (noncondensing)

Fuktighet ved lagring

15 to 95% @ 149°F (65°C) (noncondensing)

Driftstemperaturområde

0 to 45°C

Lagringstemperatur

-40 to 70°C

Adaptertilkoblingsmuligheter

Varmespredning

164 BTU/hr (173 kJ/hr)

Størrelse på adressetabell

8000 entries

Administrasjonsfunksjoner

HP PCM+; HP PCM; command-line interface; Web browser; configuration menu; out-of-band management

Kommunikasjon

RFC 783 TFTP; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLANs; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2096 IP Forwarding Table MIB; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 3176 sFlow

Enhetsbehandling

HTML and telnet management

Generelle protokoller

IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 951 BOOTP; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4

IP Multicast

RFC 3376 IGMPv3

MIBer

RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1573 SNMP MIB II; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2863 The Interfaces Group MIB; RFC 3418 MIB for SNMPv3

Nettverksadministrasjon

IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; SNMPv1/v2c/v3

Sikkerhet

IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; RFC 2866 RADIUS Accounting; Secure Sockets Layer (SSL); SSHv2 Secure Shell

Latens

Latency: < 5.6 µs (FIFO 64-byte packets)

Gjennomløp

up to 35.7 million pps

Svitsjekapasitet

48 Gbps

Porter

20 autosensing 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC transceivers)

Ansvarsfraskrivelse

Bilde, juridisk ansvarsfraskrivelse

Product image may differ from actual product

Spesifikasjoner

Webadresse for tilleggsinformasjon

http://www.hp.com/go/procurve/

Produktmål (med ekstra etterbehandler, metrisk)

Minimumsmål (B x D x H)

32.26 x 44.2 x 4.32 cm

Kassevekt (kasse eller hovedkartong)

Vekt

3.27 kg

Tekniske merknader

When using mini-GBICs with this product, mini-GBICs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.

Garantialternativer

Garanti

Lifetime, advance replacement, next business day

Garantialternativer

3-year, 4-hour onsite, 13x5 coverage for hardware (U2855E); 3-year, 4-hour onsite, 24x7 coverage for hardware (U2856E); 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (U6304E)
