| Technical Specifications |
| Standards |
| • |
IEEE 802.3u 100BASE-TX Fast Ethernet |
| • |
IEEE 802.3 10BASE-T Ethernet |
| • |
ANSI/IEEE 802.3 NWay auto-negotiation |
| • |
PCI local bus 2.2 specifications | |
| Topology |
|
| Protocol |
|
| Network Data Transfer Rate |
| • |
100BASE-TX: 100Mbps |
| • |
10BASE-T: 10Mbps | |
| Full Duplex |
| • |
Fast Ethernet: 200Mbps |
| • |
Ethernet: 20Mbps | |
| Network Cables |
| • |
10BASE-T:
| • |
2-pair UTP Cat. 3, 4, 5 (100 m) |
| • |
EIA/TIA-568 100-ohm shielded twisted-pair (STP) (100 m) | |
| • |
100BASE-TX:
| • |
2-pair UTP Cat. 5 (100 m) |
| • |
EIA/TIA-568 100-ohm shielded twisted-pair (STP) (100 m) | | |
| System |
| IRQ |
|
| I/O Address |
|
| Cache Buffer |
| • |
2K byte receive/transmit FIFO | |
| Diagnostic LED Report |
| • |
Link/Act |
| • |
-10/100Mbps speed | |
| Environmental & Physical |
| Power Consumption |
|
| Dimensions |
|
| Weight |
|
| Temperature |
| • |
Operating: 0° to 40° C (32° to 104° F) |
| • |
Storage: -22° to 55° C (-13° to 131° F) | |
| Humidity |
| • |
5 % -95% non-condensing | |
| Emission |
| • |
FCC Class B |
| • |
BSMI Class B |
| • |
CE Class B |
| • |
C-Tick | |
| Drivers Supported |
| Drivers Supported |
| • |
Novell NetWare 3.x, 4.x, 5.x, 6.x & ODI DOS |
| • |
Microsoft Windows NT 3.51, 4.0 , 95, 95 OSR2, 98, 98SE, ME, 2000, XP |
| • |
Microsoft Windows for Workgroups 3.11 |
| • |
Microsoft Client for DOS |
| • |
IBM LAN Support Program 1.3x |
| • |
FTP PC/TCP |
| • |
Sun PC-NFS |
| • |
NDIS 2.x, 3.x drivers |
| • |
Packet driver |
| • |
Linux Kernel v2.0.x, v2.2.x, v2.4.x | |
| Remote Boot |
| Boot ROM Address |
| • |
Searched by system BIOS | |
| Boot ROM Size |
|
| Remote Boot Server Support |
| RPL Boot ROM Supports |
| • |
Novell NetWare 3.x, 4.x, 5.x RPL Boot Server |
| • |
Microsoft Windows NT 4.0 Boot Server | |
| Ordering Information |
| Part Number |
|

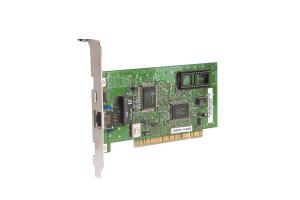

| DFE-530TX |
|
