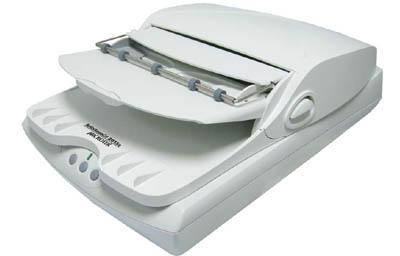

MICROTEK ARTIXSCAN DI 2015C
|
|
MICROTEK ARTIXSCAN DI 2015C
|
Beskrivelse
Spesifikasjoner
ArtixScan DI 2015c
Bundled with a newly improved ScanWizard DI program, the ArtixScan DI 2015c makes it easy to digitize piles of paper files. When OCR option window is activated, the built-in Auto Orientation function enables every scanned and saved OCR files present in a readable direction. Besides, the smart duplex scanning function turns your ArtixScan DI 2015c into a duplex scanner with a simplex scanner budget.
Also, the ArtixScan DI 2015c offers 600-dpi optical resolution and 48-bit color input depth, ensures that your scans will catch all the details and color fidelity presenting in the originals.
The ArtixScan DI 2015C simplifies image capturing process and provides satisfactory image quality for professionals.
Include Automatic Document Feeder (ADF) with
50-pages capacity
The high-capacity Automatic Document Feeder (ADF) for the ArtixScan DI 2015c holds up to 50 sheets, supporting dimensions from 4.14" x 5.83" (105 mm x 148 mm) to 8.5" x 25" (215.9 mm x 635 mm).
3 programmable function buttons
The programmable function buttons on the front panel of the scanner provide you an intuitive and easy way to access scanner functions. You can scan, copy, fax or e-mail documents fast and conveniently just by one simple click.
New and advanced ScanWizard DI software
All-in-one control panel offers a host of features and image adjustment controls. Supporting the TWAIN driver, ScanWizard DI also features full document scanning tools and on-screen proofing. Its multi-scanning area and preview option allow you to obtain quick scans in the preview window.
Smart duplex scanning support
With this feature, ScanWizard DI enables simplex scanners to scan both sides of a document in one simple click. It efficiently upgrades your present simplex scanner to a duplex scanner, saving a lot of effort and money.
OCR Orientation
With this feature, ScanWizard DI enables every scanned and saved OCR files present in a readable direction. No more fuzzy editing software is needed.
Paper count
The paper count allows user to keep track of all scan actions from both flatbed and ADF. This feature helps to estimate when you may need to replace the rubber or separation pad, or to apply maintenance and service to your scanner, making the use of your scanner more effectively.
Save multiple images as a single file
This advanced feature allows user to save multiple scanned images as a single file, depending on the number of the scanned images that are defined for document archival.
Document Enhancement
This feature brings out and improves the readability of text in a document that includes other elements such as color, pictures, or graphs.
- Document Enhancement
- This feature brings out and improves the readability of text in a document that includes other elements such as color, pictures, or graphs.
Specifications:
| NO. |
|
Item |
|
Details |
| 01 |
|
Product Name |
|
ArtixScan DI 2015c |
| 02 |
|
Model Type |
|
MRS-600U2ADF |
| 03 |
|
Scanner Type |
|
Desktop color ADF scanner with flatbed |
| 04 |
|
Image Sensor Type |
|
Flatbed: CCD (ChargeCoupled Device) ADF: CCD |
| 05 |
|
Resolution |
|
Flatbed: 600dpi x 1200dpi ADF: 600dpi |
| 06 |
|
Light Source |
|
CCFL |
| 07 |
|
Scanning Modes |
|
Color, grayscale, and black-and-white in a single scanning pass |
| 08 |
|
Scanning Area |
|
Flatbed: 8.5" x 11.7" (215.9 mm x 297 mm)ADF: 8.5" x 25" (215.9 mm x 635 mm) |
| 09 |
|
Scanning Speed |
|
20 ppm, at 200 dpi, A4/line art20 ppm, at 200 dpi, A4/grayscale15 ppm, at 200 dpi, A4/color |
| 10 |
|
Optical Density |
|
X |
| 11 |
|
Dynamic Range |
|
X |
| 12 |
|
Bit Depth |
|
8 bit/24 bit |
| 13 |
|
Feed Detection |
|
X |
| 14 |
|
Feeder Capacity |
|
50 pages |
| 15 |
|
Paper Size |
|
Flatbed:Max: 8.5" x 11.7" (215.9 mm x 297 mm)ADF:Min: 4.14" x 5.83" (105 mm x 148 mm)Max: 8.5" x 25" (215.9 mm x 635 mm) |
| 16 |
|
Paper Weight (Thickness) |
|
10lbs~30lbs |
| 17 |
|
Duty Cycle |
|
1500 pages per day |
| 18 |
|
Roller Life |
|
300,000 scans |
| 19 |
|
Rubber Pad Life |
|
30,000 Scans |
| 20 |
|
Lamp Life |
|
5000 hrs |
| 21 |
|
Connectivity |
|
Hi-Speed USB (USB 2.0) |
| 22 |
|
Drivers |
|
TWAIN |
| 23 |
|
Smart-Touch Buttons |
|
3 buttons |
| 24 |
|
Scanable Media Types |
|
Paper |
| 25 |
|
Supported File Types |
|
TIF, BMP, PCX, PDF, DCX, JPG |
| 26 |
|
Supported Film Types |
|
X |
| 27 |
|
Available Film Holders |
|
X |
| 28 |
|
OS Support |
|
Windows XP,Vista,7 |
| 29 |
|
Dimensions (L x W x H) |
|
17" x 11.4" x 5.7" (432 mm x 290 mm x 145 mm) |
| 30 |
|
Weight |
|
10.6 lbs. (4.8 kg.) |
| 31 |
|
Environmental Compliance |
|
WEEE,RoHS,EuP |
| 32 |
|
Certifications |
|
CE,FCC,BSMI,CB,CCC |
| 33 |
|
Limited Warranty |
|
1 year |
| 34 |
|
Environment |
|
Temperature 50 to 104 |
| 35 |
|
Power Source |
|
DC 15V ,2.5A |
| 36 |
|
Power Consumption |
|
15.4Watts (Operation mode) no support (Sleep mode)<1W(Off mode) |
| 37 |
|
AC/DC Adapter |
|
Haider:HDAD38W101 |
| 38 |
|
USB Bus Power |
|
N/A |
| 39 |
|
System Requirements PC |
|
Pentium III PC or higher with USB or High-Speed (USB 2.0) portMicrosoft Windows 2000 /XP /Vista/Windows 7 |
| 40 |
|
System Requirements MAC |
|
x |
| 41 |
|
Inbox Contents |
|
ArtixScan DI 2015CHi-Speed USB (USB 2.0) cablePower adapter> Power cord>Software CD(s)User Manuals |
| 42 |
|
Software Included |
|
Microtek ScanWizard DIABBYY FineReader Sprint InterVideo MediaOne Gallery (PC)Adobe Acrobat Reader |
| 43 |
|
Accessories |
|
USB Cable,Power adapter |
| Største skannestørrelse | 215,9 x 297 mm |
| Optisk skanneoppløsning | 600 x 1200 DPI |
| Fargeskanning | Ja |
| Dobbeltsidig skanning | Nei |
| Input colour depth | 24 bit |
| Filmskanning | Nei |
| ADF scan speed (b/w, A4) | 20 ppm |
| ADF scan speed (colour, A4) | 15 ppm |
| Scanner type | Flatbed & ADF |
| Kapasitet for automatisk dokumentmater | 50 ark |
| Standard interfaces | USB 2.0 |
| Strømforbruk | 15,4 W |
| Sensortype | CCD |
| Lyskilde | CCFL |
| Scanner filformater | BMP, JPG, PDF, TIFF |
| Skannerdrivere | TWAIN |
| Fysiske mål (BxDxH) | 290 x 432 x 145 mm |
| Minstekrav til systemet | USB 2.0 |
| Minimum prosessor | Pentium III |
| Kompatible operativsystemer | Windows XP/Vista/7 |
| ISV-sertifiseringer | WEEE, RoHS, EuP CE, FCC, BSMI, CB, CCC |
