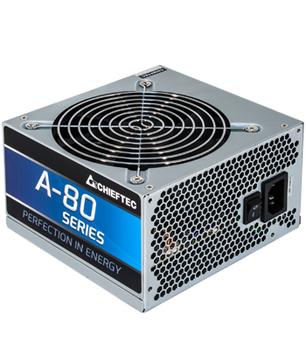

CHIEFTEC 400W PSU A-80 Series ATX-12V V.2.3 PS-2 type with 12cm Fan PFC >80% Efficiency Bulk
SKU:
CTG-400-80P-BULK
-
A-80 Series
Why pay more than necessary! CHIEFTECs first power supply series which was exclusively designed for the European market, is characterized by a high efficiency for a minimalist price. Defined and layed out for a fixed voltage of 230V , these A-80 series models are true saving wonder s, of course considering the non-certified 80+ feature! With wattages ranging from 350W up to 500W these power supplies are optimised for both proper office and home solutions.
Values
| Model |
AC Input |
Frequency |
Max.
Load |
Output |
Spezial |
|
+5V |
+3.3V |
+12V1 |
+12V2 |
+12V3 |
+12V4 |
-12V |
+5VSB |
|
CTG-400-80P |
230V | 3.0A |
50 Hz |
400 W |
20A |
24A |
18A |
18A |
n/a |
n/a |
0.3A |
2,5A |
n/a |
|
120W |
300W |
n/a |
3.6W |
12.5W |
Data
|
Form factor: |
Noise level: |
Fan:
|
Specification:
|
Dimension (DxWxH): |
|
|
24db |
120mm |
ATX 12V 2.3 |
|
Connectors
| 24PIN ATX |
4PIN 12V |
8PIN EPS |
8PIN PCIe (6+2) |
6PIN PCIe |
SATA |
Molex |
Floppy |
|
1x |
1x |
n/a |
n/a |
1x |
3x |
3x |
1x |
Features
• Active PFC (Power Factor Correction)
• UVP (Undervoltage protection)
• OVP (Overvoltage protection)
• SCP (Short-circuit protection)
• OPP (Overload protection)
• OCP (Overcurrent protection)
• OTP (Over Temperature Protection)
• AFC (Automatic Fanspeed Control)
• MTBF (mean time between failure): >100.000h
|
Total strøm 400 W |
AC input voltage 230 |
AC input frequency 50 |
Innput-strøm 3 |
Maksimum inngående strøm (@110V) +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
Power Factor Correction (PFC) type Aktiv |
Combined power (+3.3V) 120 W |
Combined power (+5V) 120 W |
Max output current (+3.3V) 24 A |
Max output current (+12V1) 18 A |
Max output current (+12V2) 18 A |
Max output current (+5V) 20 A |
Max output current (-12V) 0,3 A |
Max output current (+5Vsb) 2,5 A |
Effektivitet 85% |
Power protection features Over current, Over-spenning (volt), Overbelastning |
|
Motherboard power connector 24-pin ATX |
Number of SATA power connectors 4 |
Peripheral (Molex) power connectors (4-pin) 2 |
EPS power connector (8-pin) |
PCI Express power connectors (6+2 pin) 1 |
CPU power connector (4+4 pin) |
ATX strømtilkobling (24-pin) |
ATX power connector (20+4 pin) |
|
Formfaktor PS2 |
Formål PC/server |
ATX version 2.3 |
|
Produktfarge Grå |
|
Fan diameter 12 cm |
Antall vifter 1 fan(s) |
Fan location Topp |
Form for nedkjøling Aktiv |
|
Bredde 140 mm |
Dybde 150 mm |
Høyde 87 mm |
|
RoHS compliance |
